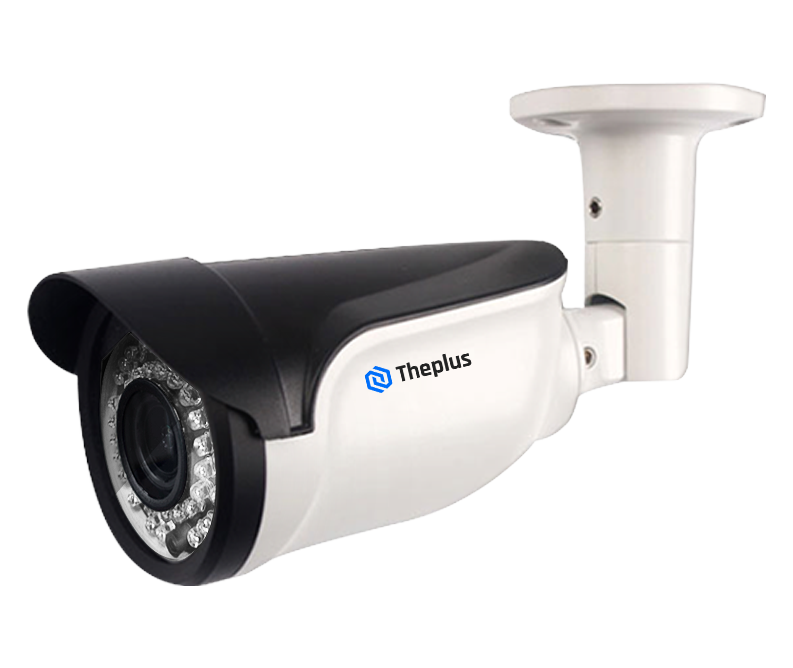

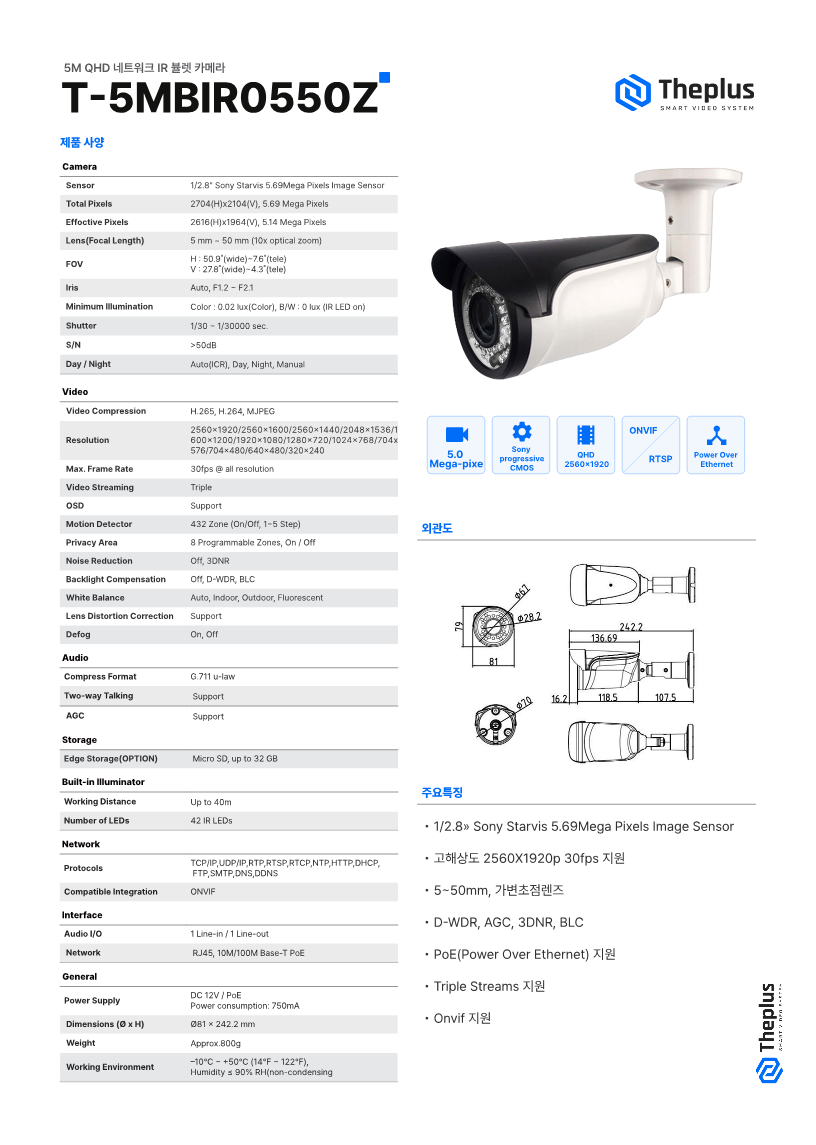

Bullet Camera T-5MBIR0550Z
페이지 정보
본문
| T-5MBIR0550Z 5M QHD 네트워크 IR 뷸렛 카메라 주요특징 • 1/2.8" Sony Starvis 5.69 Mega Pixels Image Sensor • 고해상도 2560x1920p 30fps 지원 • 5~50mm, 가변초점렌즈 • D-WDR, AGC, 3DNR, BLC • PoE(Power Over Ethernet) 지원 • Triple Streams 지원 • Onvif 지원 |
Sensor | 1/2.8" Sony Starvis 5.69Mega Pixels Image Sensor |
Total Pixels | 2740(H)x2104(V), 5.69 Mega Pixels |
Effoctive Pixels | 2616(H)x1964(V), 5.14 Mega Pixels |
Lens(Focal Length) | 5mm~50mm (10x optical zoom) |
FOV | H : 50.9°(wide)~7.6°(tele), V : 27.8°(wide)~4.3°(tele) |
Iris | AutoF1.2~F2.1 |
Minimum Illimination | Color : 0.02 lux(Color), B/W : 0 lux (IR LED on) |
Shutter | 1/30 ~ 1/30000 sec. |
S/N | >50dB |
Day / Night | Auto(ICR), Day, Night, Manual |
■ Video
Video Compression | H.265, H.264, MJPEG |
Rrsolution | 2560x1920 / 2560x1600 / 2560x1440 / 2048x1536 / 1600x1200 / 1920x1080 / 1280x720 / 1024x768 / 704x480 / 640x480 / 320x240 |
Max. Frame Rate | 30fps @ all resolution |
Video Streaming | Triple |
OSD | Support |
Motion Detector | 432 Zone (On/Off, 1~5 Step) |
Privacy Area | 8Programmable Zones, On/Off |
Noise Reduction | Off, 3DNR |
Backlight Compensation | Off, D-WDR, BLC |
White Balance | Auto, Indoor, Outdoor, Fluorescent |
Lens Distortion Correction | Support |
Defog | On, Off |
■ Audio
Compress Format | G.711 u-law |
Two-way talking | Support |
AGC | Support |
■ Storage
Edge Storage(OPTION) | Micro SD, up to 32GB |
Built-in Illumnator | |
Working Distance | Up to 40m |
Number of LEDs | 42 IR LEDs |
■ Network
Protocols | TCP/IP, UDP/IP, RTP, RTSP, RTCP, NTP, HTTP, DHCP, FTP, SMTP, DNS, DDNS |
Compatible Integration | ONVIF |
■ Interface
Audio I/O | 1Line-in / 1line-out |
Network | RJ45, 10M/100m Base-t PoE |
■ General
Power Supply | DC 12V / PoE Power consumtion: 750mA |
Dimensions(Ø x H) | Ø 81 x 242.2 mm |
Weight | Approx. 800g |
Working Environment | -10°C ~ +50°C (14°F ~ 122°F), Humidity ≤ 90% RH(non-condensing) |
