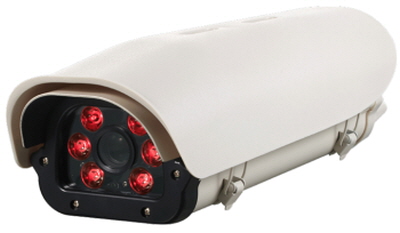

특수카메라 T-2MC100
페이지 정보
본문
| T-2MC100 2M FHD 차량번호 인식용 네트워크 카메라 주요특징 • 2MP HD IP IR LPR HOUSING CAMERA • 1/2.8" CMOS Image Sensor • 차량번호판 식별거리 : 15m (일반야간감시 80m 0.0Lux) • 적외선 방사각도 : 35˚ (고정 방사각) • 셔터스피드 : 1/500sec (속도 60km까지 인식) • 적외선 파장 : 740nm • 렌즈사양 : 10배(5~50mm) AF 모터 줌 렌즈 • 입력 전원 : DC12V,2A @MAX. 20W With IR On • 광학 10배 줌 / 디지털 32배 줌 • 안개 보정 • 8 프라이버시 마스크 • 양방향 오디오 통신 |
Sensor | 1/2.8” 2MP CMOS Image Sensor |
Total Pixels | 1945(H) x 1109(V) 2.16 Megapixel |
Effoctive Pixels | 1945(H) x 1097(V) 2.13 Megapixel |
Lens(Focal Length) | F=2.0(±5%), f=5mm~50mm 10x AF motor zoom lens |
FOV | H : 50.9°(wide)~7.6°(tele), V : 27.8°(wide)~4.3°(tele) |
Minimum Illimination | Color : 0.02 lux(Color), B/W : 0 lux (IR LED on) |
S/N | >50dB |
Day / Night | Auto(ICR), Day, Night, Manual |
Lens Control | Auto / Manual / One-Push |
■ Built-in Illuminator
Lens Type | Aspherical lens |
IR Angle | 35˚ |
Number of LEDs | HIGH POWER LED 6EA (Light density 160mw) |
Light emitting band | 740nm |
Working Distance | 80m |
License Plate Identification | 15M (Shutter Speed 1/500s, Vehicle speed Up to 60Km) |
■ Audio
Compress Format | G.711 u-law |
Two-way talking | Support |
Audio I/O | Mono Jack, Line In / Out |
■ Video
Video Compression | H.265, H.264, MJPEG |
Rrsolution | 1920x1080 / 1280x720 / 1024x768 / 704x480 / 640x480 / 320x240 |
Max. Frame Rate | 30fps @ all resolution |
Video Streaming | Triple Stream (Stream 1, 2, 3) RTP/RTSP, Unicast RTP, Multicast RTP |
Image Settings | Day & Night, Focus, White Balance, WDR, DE-FOG, DNR, BRIGHTNESS, IMAGE Mirror, Motion Detection, Privacy Mask(8 Mask) |
Video Output | CVBS 1Vp-p(NTSC or PAL) |
■ Network
Protocols | TCP/IP, UDP/IP, RTP, RTSP, RTCP, NTP, HTTP, DHCP, FTP, SMTP, DNS, DDNS |
Compatible Integration | ONVIF |
Interface | Ethernet 10/100 Base-T (RJ-45) |
■ General
Power Supply | DC 12V/3A (Max. 30W with IR On) |
Dimensions(W x H x D) | 150mm(W) x 125mm(H) x 425mm(D) |
Weight | Approx. 2500g |
Working Environment | -30°C ~ +60°C |
