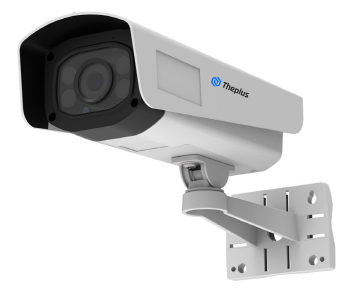

특수카메라 T-5MHBIR2812Z(S)
페이지 정보
본문
| T-5MHBIR2812Z 5M QHD 네트워크 IR 음성방송 뷸 카메라 주요특징 • 음성자동방송 / 스피커 내장 / 영상분석 특화 • 1/2.8» Sony Starvis 5.69Mega Pixels Image Sensor • 고해상도 2560X1920p 30fps 지원 • 2.7~13.5mm, 가변초점렌즈 • D-WDR, AGC, 3DNR, BLC • PoE(Power Over Ethernet) 지원 • Triple Streams 지원 • Onvif 지원 • True 3-Axis Easy Gimbal Bracket |
Sensor | 1/2.8" Sony Starvis 5.69Mega Pixels Image Sensor |
Total Pixels | 2704(H)x2104(V), 5.69 Mega Pixels |
Effoctive Pixels | 2616(H)x21964(V), 5.14 Mega Pixels |
Lens(Focal Length) | 2.7mm~13.5mm MFZ Lens |
FOV | H : 100°(wide)~31°(tele), V : 64°(wide)~23°(tele) |
Iris | Auto, F1.2~F2.1 |
Minimum Illimination | Color : 0.02 lux(Color), B/W : 0 lux (IR LED on) |
Shutter | 1/30 ~ 1/30000 sec. |
S/N | >50dB |
Day / Night | Auto, Day(ICR), Night(BW), ICR Control |
■ Video
Video Compression | H.265, H.264, MJPEG |
Rrsolution | 2560x1920 / 2560x1600 / 2560x1440 / 2048x1536 / 1600x1200 / 1920x1080 / 1280x720 / 1024x768 / 704x480 / 640x480 / 320x240 |
Max. Frame Rate | 30fps @ all resolution |
Video Streaming | Triple |
OSD | Support |
Motion Detector | 432 Zone (On/Off, 1~5 Step) |
Privacy Area | 8 Programmable Zones, On/Off |
Noise Reduction | Off, 3DNR |
Backlight Compensation | Off, D-WDR, BLC |
White Balance | Auto, Indoor, Outdoor, Fluorescent |
Lens Distortion Correction | Support |
Defog | On, Off |
■ Audio
Compress Format | G.711 u-law |
■ System
OS | Embedded Linux |
■ Built-in Illuminator
Working Distance | Up to 20m |
Number of LEDs | IR LED 2PCS / Whtie LED 2pcs |
■ Network
Protocols | TCP/IP, UDP/IP, RTP, RTSP, RTCP, NTP, HTTP, DHCP, FTP, SMTP, DNS, DDNS |
Compatible Integration | ONVIF |
Simultaneous Access | Max. 10 user |
■ Interface
Audio I/O | 1Line-in / 1line-out |
Network | RJ45, 10M/100m Base-t PoE |
■ General
Power Supply | DC 12V ±10% / PoE Power Current Max 750mA |
Dimensions(W x H x D) | 100(W) x 73.7(H) x 264.3(D) mm |
Weight | Approx. 800g |
Working Environment | -10°C ~ +40°C (14°F ~ 104°F), Humidity ≤ 80% RH(non-condensing) |
